ZLHV1150 High-Voltage Differential Probe

ZLHV1150 High-Voltage Differential Probe

This high-voltage differential probe is designed for power electronics, inverter systems, and high-voltage measurement applications. It provides multiple attenuation and voltage-level options with a unified appearance and user experience, and is compatible with 1 MΩ input oscilloscopes.

Supports bandwidth limit, overload indication, auto-save, auto-zero, and other functions (see datasheet for details).

Electrical Specifications Comparison

Parameter Unit ZLHV1150

Note: If the oscilloscope has a 50 Ω input, readings must be converted according to the system impedance relationship. Refer to the latest datasheet for accurate information.

Maximum Differential Voltage VS Frequency Curve

ZLHV1150 Frequency Curve

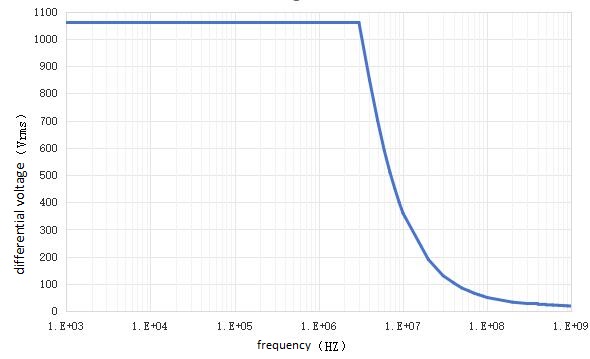

Reference Figure 1: ZLHV1150 Maximum Differential Voltage VS Frequency

Datasheet Download
